Single-stage diaphragm pressure regulator for HP & UHP gases - RX3000

RX3000 are single stage free-diaphragm pressure regulators for HP & UHP applications. The first of its kind threadless pressure regulators for the highest level of purity.

Key advantages

Unique threadless design in all versions for a higher purity level
Optimized supply pressure effect and excellent flow stability
Life duration according to CGA E4
Vacuum to 240 bar (3500 psi) inlet
Assembling, testing & packaging in cleanroom: Class ISO 4
Individual serial number for full traceability
Electropolished surface per SEMI F19 UHP Grade
316L VAR® stainless steel double melt per SEMI F20 option available

Contact an expert
Configure product
Download datasheet

CONSTRUCTION MATERIAL

	Parts	Material
Wetted parts	Body	SS 316L, VAR
	Seat	PCTFE (PVDF, Polyimid optional)
	Diaphragm	SS 316L (Hastelloy® optional)
	Poppet	SS 316L (Hastelloy® optional)
	Spring	SS 316L (Hastelloy® optional)
	Spring Holder	SS 316L
Non-wetted parts	Bonnet	SS 303
	Handwheel	PA 6.6
	Others	Stainless Steel and Brass

SURFACE FINISH

S	V	U
Ra 0.4 μm (15 μin)	Ra 0.25 μm EP (10 μin)	Ra 0.13 μm EP (5 μin)

Flow capacity (Cv)	0.09	0.15
Supply pressure effect I*	0.25	0.5

_{*1 bar / 100 bar inlet pressure change}

FLOW CURVES

RX3000 - Cv 0,09 Product image

Product image

RX3000 - Cv 0,15

Product image

Specifications

Max inlet pressure	240 bar (3500 psig), 21 bar (300 psig)
Outlet Pressure	0.7/ 2/4/7/10/21 bar (10/30/60/100/150/300 psig)
Temperature range	-20°C to +65°C (-4°F to +149°F)
Regulator type	Free diaphragm
Burst pressure	300% of operating pressure
Proof pressure	150% of operating pressure
Certified max. helium outboard leak rate	≤ 1 x 10-9 mbar.l/s
Certified max. helium across the seat leak rate - at max. pressure	≤ 1 x 10-8 mbar.l/s
Certified max. helium inboard leak rate - at max. pressure	≤ 1 x 10-9 mbar.l/s

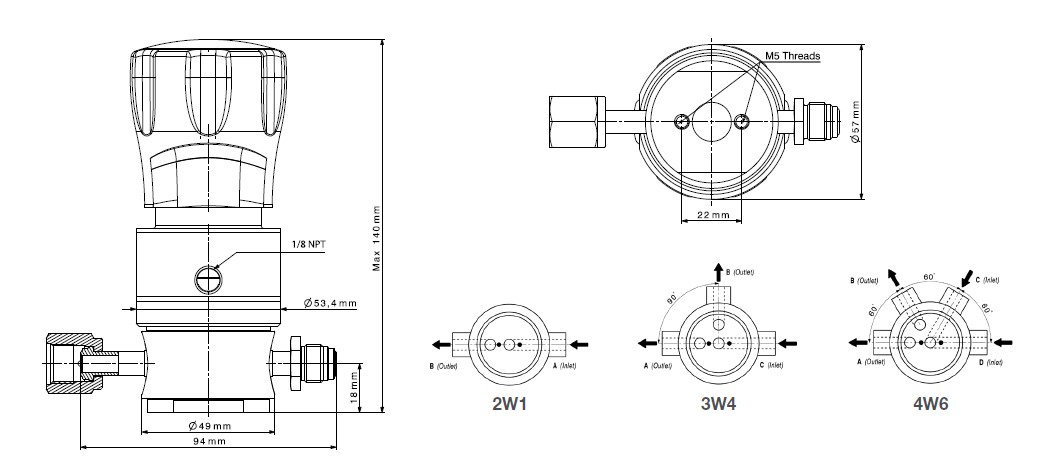

Dimensional drawings

Product Configurator

	Regulator type	Outlet Pressure	Seat material	Cv value	Body material	Surface finish	Porting configuration	Connections	Actuation	Inlet pressure	Options
RX	30	01	K	009	S	S	2W1	4F	M	021	H
	Free diaphragm 30	0.7 bar (10 psig) 01 2 bar (29 psig) 02 4 bar (58 psig) 04 7 bar (102 psig) 07 10 bar (145 psig) 10 21 bar (305 psig) 21	PCTFE K Polyimid V PVDF* P PTFE* T	0.09 009 0.15 015	Stainless Steel AISI 316L S Stainless Steel AISI 316 AOD Var V	Ra 0.4 μm (15 μin) S Ra 0.25 μm EP (10 μin) V Ra 0.13 μm EP (5 μin) U	2 ports 2W1 3 ports 3W4 4 ports 4W6	1/4” Female VCR 4F 1/4” Male VCR 4M	Handwheel M	21 bar (305 psig) 021 240 bar (3,500 psig) 240	Hastelloy Trim H Gauge (bar/PSI)* PG0 Gauge (MPa)*** PG1

I am interested

* PTFE,PVDF seat and 0,7 bar (10psig) outlet pressure are only available for 21 bar (305 psig) inlet pressure
** Includes Hastelloy C22 Poppet, wetted spring & diaphragm
*** Standard gauge ports are Metal Face Seal ¼\" Male

Downloadable catalogs, brochures

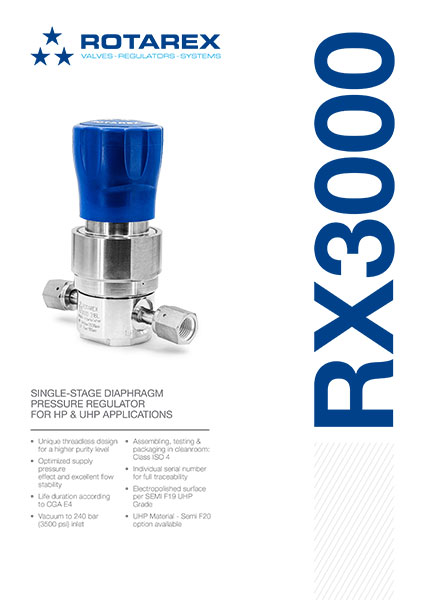

RX3000 UHP Pressure Regulator
