Safety device for acetylene use - 10HD-N
10HD-N is used on production plants of acetylene according to ISO 14114. It is either placed between the compressor and the filler manifold where there is a risk of explosion; or before the filling station distribution unit and each filler clamp.
Key advantages
  • Multi-purpose safety device for high pressure acetylene pipes
  • Equipped with a fast-action automatic shut-off device, a flame arrestor
  • Approved by validation test according to EN ISO 15615
  • In compliance with the PED 2014/68/EU directive

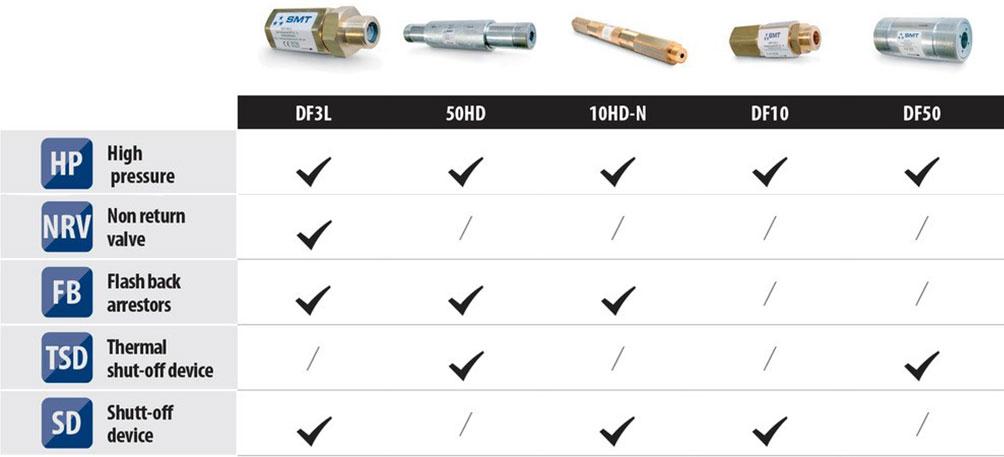

Product image

Specifications
Gas usedC2H2
Maximum operating pressure25 bar
Inlet connectionM 24 x 1.5 male orG¾ male
Outlet connectionM 24 x 1.5 male or G3/4 male
Body materialBrass
Total length240, 348 mm(M24 version), 370, 450 mm(G¾ version)
Weight2.65 kg
Body diameter(maximum)42 Mm
Dimensional drawings
Drawing
Downloadable catalogs, brochures
  • Download
    Acetylene Safety Equipment
    Last update: Jun 29, 2023
    Available in: en
