Safety device For acetylene use - DF10
DF10 is a safety device that can be used in high-pressure acetylene pipes and bundles as flow cut off device according to ISO 10961. It should be placed before regulators, switch over boards or supply boards AD version.
Key advantages
  • Fast action shut off device for high pressure acetylene pipes.
  • Automatically cutting off acetylene supply in case of decomposition.
  • Approved by validation test according to EN ISO 15615
  • In compliance with the PED 2014/68/EU directive



Product image

Specifications
Gas usedC2H2
Maximum operating pressure25 bar
Inlet connectionG3/4 female according to ISO 228
Outlet connectionG3/4 male according to ISO 228
Body materialBrass
Total length109 mm
Weight0.7 Kg
Body diameter (maximum)36 mm
Flow coefficientkv = 0,74

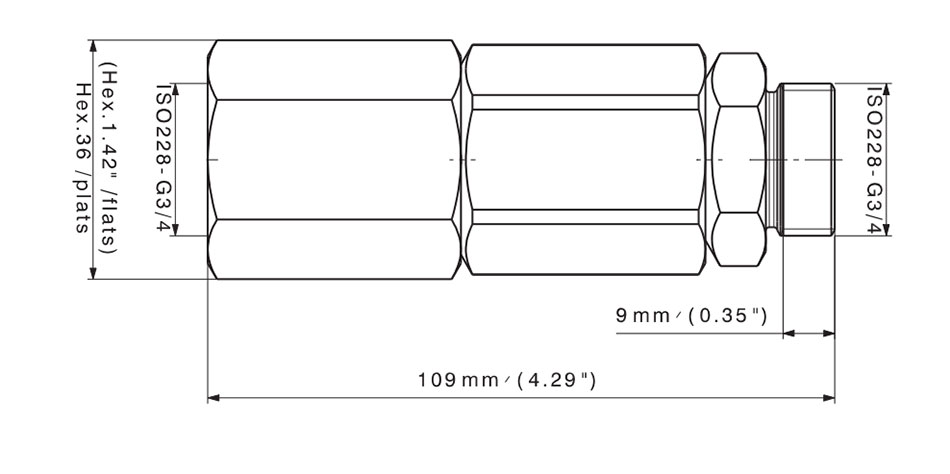

Dimensional drawings
Drawing
Downloadable catalogs, brochures
  • Download
    Acetylene Safety Equipment
